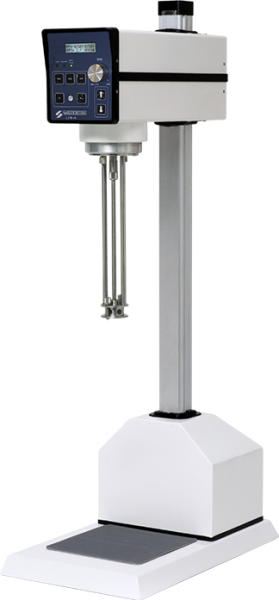

Silverson Laboratory Mixer L5M-A

---

	HP	R.P.M	A	B	TEFC B	EXPF C	D	E	F	G	H	I	J	K
BX/60	1.5	3600	4 5⁄8	24	11	12 ½	9	9	7	8	4x3⁄8	10	8	6x3⁄8
DX/60	3	3600	6 ¼	27	13	14	10	10	8	9	4x3⁄8	10	8	6x3⁄8
EX/60	5.0	3600	6 ½	31	13 ½	15	12	12	10 ½	10 ½	4x7⁄16	13 ¼	11 ½	6x7⁄16
FX/60	7.5	3600	6 ½	41	15 ¾	17 ½	12	16	10	14 ½	4x7⁄16	16	14	6x7⁄16
GX15	15	3600	11 ¼	48	21	22 ½	15	19	12	17	4x9⁄16	16	14	6x9⁄16
GX15	15	1800	11 ¼	48	21	22 ½	15	19	12	17	4x9⁄16	16	14	6x9⁄16
GX25	25	3600	11 ¼	48	22 ¼	25 ½	15	19	12	17	4x9⁄16	16	14	6x9⁄16
700X	20	3600	14 ½	60	22 ¼	25 ½	19	15	17	12	4x9⁄16	19	16	6x9⁄16
HX15	15	1200	16 ½	+	22 ¼	25 ½	20 ½	17	18 ¾	15	4x11⁄16	23	20 ½	6x13⁄16
HX40	40	1800	16 ½	+	28 ½	30	20 ½	17	18 ¾	15	4x11⁄16	23	20 ½	6x13⁄16
JX	25	1200	16 ½	+	28 ½	29 ¾	20 ½	17	18 ¾	15	4x11⁄16	23	20 ½	6x13⁄16
KX	from 50	1200	24	+	35	39	34	28	31	24	4x11⁄16	34	31 ¼	8x11⁄16

+ Length adjusted to suit vessel.

* Capacities available on request.

The dimensions shown are approximate only and certified diagrams should be used for installation purposes. Silverson reserves the right to change dimensions and specifications without notice.
