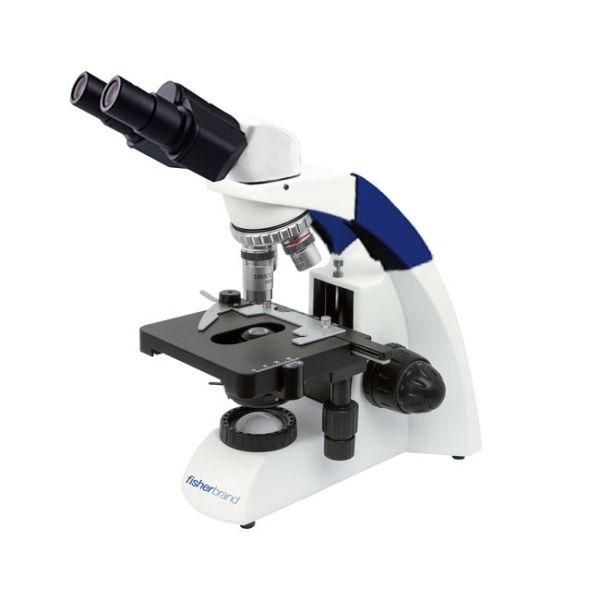

Fisherbrand™ Entry Level Upright Microscope

Description

OPTICAL SYSTEM

• Finite optical system
• Inward facing 4 position turret nosepiece with click stops
• 4X, 10X, 40X, 100x(oil) objectives
• 10X WF with 18 mm FOV eyepiece

VIEWING HEAD

• Viewing head with 30° incline and 360° rotation
• Optional left eyepiece diopter adjustment +/-5°
• Optional Interpupillary adjustment distance of 54 to 75 mm

FOCUSING

• Coaxial coarse and fine focusing adjustment
• Tension adjustments
• Fine focus drive movement of 0.002 mm divisions
• Rack stop adjustment for protecting objective and specimen slides from accidental breakage

STAGE

• Double layer X/Y mechanical stage
• Size: 110 mm x 125 mm
• Movement Range: 35 mm x 50 mm

CONDENSER

• Fixed Abbe Condenser w/ filter holder
• NA 1.25 with iris diaphragm

FRAME

• Rugged, durable metal frame construction
• Lightweight design makes it easy for students to move it around
• Convenient rubberized carrying handle
• Power cord storage
• Rocker on/off switch

ILLUMINATION

• Eco-friendly and energy efficient 3W LED illumination
• Dimmer control for light intensity

Specification
