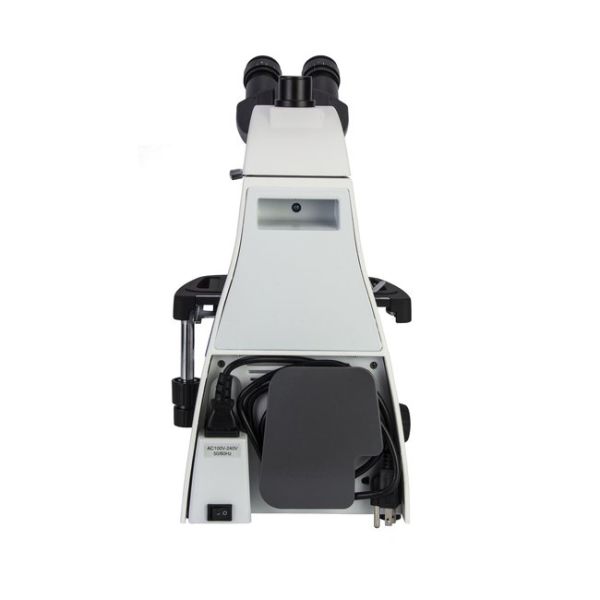

Fisherbrand™ Research Grade Upright Microscope with Camera

SKU#: FIS03-000-026
UOM: EA
Lead time if no stock (days): 49
Available Qty: 0.000000
Overview
Research Grade Upright Microscope with Camera provides exceptional quality for any lab

Manufacturer Name - LAXCO INC
Manufacturer Code - 3000026

Description

OPTICAL SYSTEM

  • Infinity optical system
  • Inward facing turret nosepiece w/ click stops
  • 4x, 10X, 40X, 100x(oil) Plan Achro objectives
  • 10X WF w/ 20 mm FOV eyepiece

VIEWING HEAD

  • Siedentopf Trinocular head with 45° incline and 360° rotation
  • Left eyepiece diopter adjustment -8° to +5°
  • Interpupillary adjustment distance of 48 mm to 75 mm
  • 80/20 split
  • 0.5x C-mount

FOCUSING

  • Coaxial coarse and fine focusing adjustment
  • Tension adjustments
  • Fine focus drive movement of 0.001 mm divisions
  • Moving range: 24 mm
  • Rack stop adjustment for protecting objective and specimen slides from accidental breakage

STAGE

  • Double layer X/Y mechanical stage
  • Size: 142 mm x 132 mm
  • Movement Range: 75  mm x 50 mm

CONDENSER

  • Adjustable Abbe Condenser with filter holder
  • NA 1.25 with iris diaphragm

FRAME

  • Rugged, durable metal frame construction
  • Lightweight design makes it easy for students to move it around
  • Carrying handle
  • Power cord storage
  • Rocker on/off switch

ILLUMINATION

  • Eco-friendly and energy efficient 3W LED illumination
  • Dimmer control for light intensity


Specification

OpticalDesign Infinity Optical System
Unit 0
Qualifier cl_2643820
Productsapid 3000026
Language en
Valueposition 0
Specification
Product NameFisherbrand™ Research Grade Upright Microscope with Camera
SKUFIS03-000-026
VisibilityCatalog, Search
UOMEA
BrandFisherbrand
Lead time if no stock (days)49
