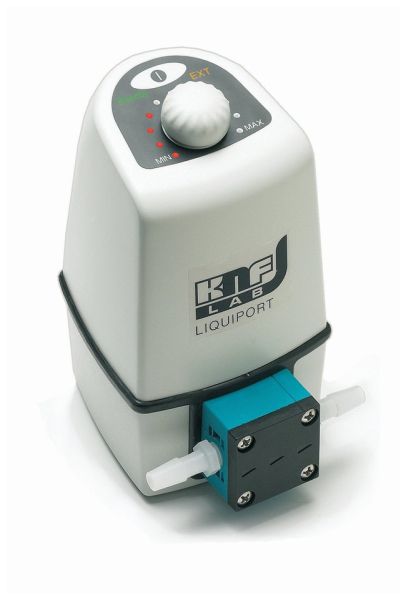

0.5-3L/MIN LIQ TRANSFER PUMP

Description

Self-priming, maintenance-free pumps will operate dry indefinitely without damage. Models are available featuring premium, corrosion-resistant PVDF and PTFE resins. There are no metal wetted parts to corrode nor any troublesome tubing to break or fatigue. Two adjustable-flow ranges are available, and additional high-pressure models are available.

• Self-priming up to 10 ft. water
• Runs dry without damage
• Reliable splash-proof housing
• Maintenance-free design
• External logic control

• Flow range: up to 3L/min.
• Maximum suction: 10 ft. H₂0
• Power: 50-60 Hz, 100-230VAC
• Hose Connector: NF100, 3/8 in. I.D.; NF300, 1/2 in. I.D.
• Premium Corrosion Resistance: PTFE head
• Excellent Corrosion Resistance: PVDF head
• High Corrosion Resistance: polypropylene head
• All models have PTFE diaphragm; FFPM valves

• Manual or external control
• Analog control: 0-10 VDC for 0%-100% flowrate
• Pressure limit protection
• Start/Stop control through TTL contact
• Output signal fault alarm
• Includes cable for external control

• The inlet of pump should not be lower than the level of liquid being transferred
• An inlet filter is required if media contains particulates or fibers larger than 50 microns
• Pulsation varies between specific pump models

Specification
