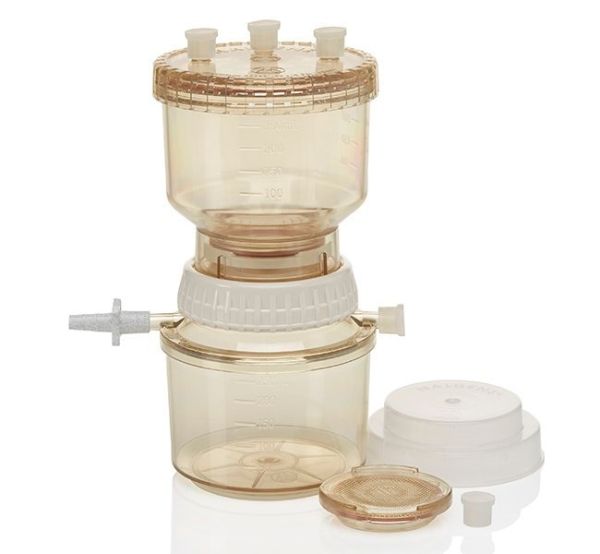

Thermo Scientificâ„¢ Nalgeneâ„¢ Reusable Filter Holders with Receiver, 250mL

SKU#: FIS09-740-23A
UOM: EA
Lead time if no stock (days): 49
Available Qty: 0.000000
Overview
Eliminate the need for a manifold or breakable glass vacuum flask. Nalgene Reusable Filter Holders with Receiver are complete, environmentally-friendly systems.

Manufacturer Name - THERMO FISHER SCIENTIFIC
Manufacturer Code - 300-4000

Description

Features
  • Graduated receiver allows easy visualization of sample volume
  • Two side arms allow connection to vacuum line
  • Upper chamber is designed for pressure or vacuum filtration
  • Independent locking rings seal upper chamber to receiver without damaging membrane to ensure efficient filtration
  • Chamber accommodates 47 or 50mm membranes (not included) and has three ports for venting (with or without syringe filters) and aseptic addition of samples
  • Ports also can be attached to a pressure source
  • Upper chamber is supplied with two membrane support plates: a sterilization plate and an analytical plate
Receiver Accepts
  • 0.25 to 0.3125″ I.D. (6.4 to 8mm) vacuum tubing
  • Syringe filters

Sterilization Plate (one-piece, clear)

  • Provides maximum flowrate and throughput
  • Suitable for cold sterilization or clarification of culture media, reagents or solvents that are compatible with holder and membrane materials
  • Nominal filter area, 13.3cm2

Analytical Plate (two-piece, white)

  • Provides optimal membrane support and keeps membrane flat to facilitate analytical procedures
  • Suitable for analysis of particulates and biological contaminants, or any microbiological analyses using the membrane filter technique
  • Nominal filter area, 11.3cm2

Includes:

Complete upper chamber, receiver, polypropylene cover and TPE port caps. (Membranes not included.)



Specification

UpperChamber 250 ml
Unit
Qualifier cl_4104448
Productsapid 300-4000
Language es
Valueposition 0
Specification
Product NameThermo Scientific™ Nalgene™ Reusable Filter Holders with Receiver, 250mL
SKUFIS09-740-23A
VisibilityCatalog, Search
UOMEA
BrandThermo Scientific
Lead time if no stock (days)49
